Zika virus NS2B protein antibody
Zika virus NS2B protein antibody detects Zika virus NS2B protein protein at cytoplasm by immunohistochemical analysis.Sample: Paraffin-embedded zika virus C6/36.Green: Zika virus NS2B protein stained by Zika virus NS2B protein antibody (GTX133308) diluted at 1:100.Blue: Fluoroshield with DAPI (GTX30920).Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

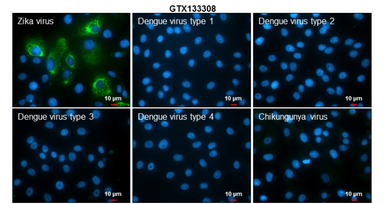

Immunofluorescent analysis of arboviruses infected cells using Zika virus NS2B protein antibody (GTX133308).
Samples: EUROIMMUN Arboviral Fever Mosaic 2 slide (FR 2668-1010-1).
Green: Zika virus NS2B protein antibody (GTX133308) diluted at 1:100.
Blue: Hoechst 33342 staining.
Scale bar = 10 μm.
This image was provided courtesy of cooperative research laboratories.

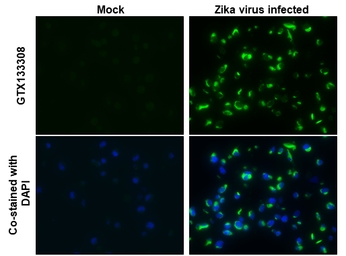

Immunofluorescent analysis ofZika Virus-PRVABC59 infected (A) and non-infected (B) vero cells using Zika virus NS2B protein antibody (GTX133308).
Green: Zika virus NS2B protein antibody (GTX133308) diluted at 1:4000.
Non-infected (–) and infected (+) C6/36 whole cell extracts (30 μg) were separated by 15% SDS-PAGE, and the membrane was blotted with Zika virus NS2B protein antibody (GTX133308) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

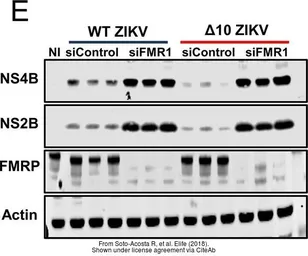

The data was published in the journal Elife in 2018.PMID: 30511641

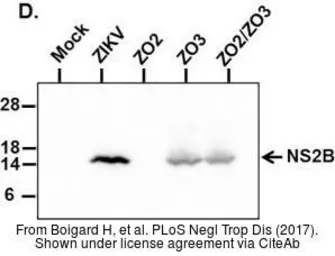

The data was published in the journal PLoS Negl Trop Dis in 2017.PMID: 28481898
